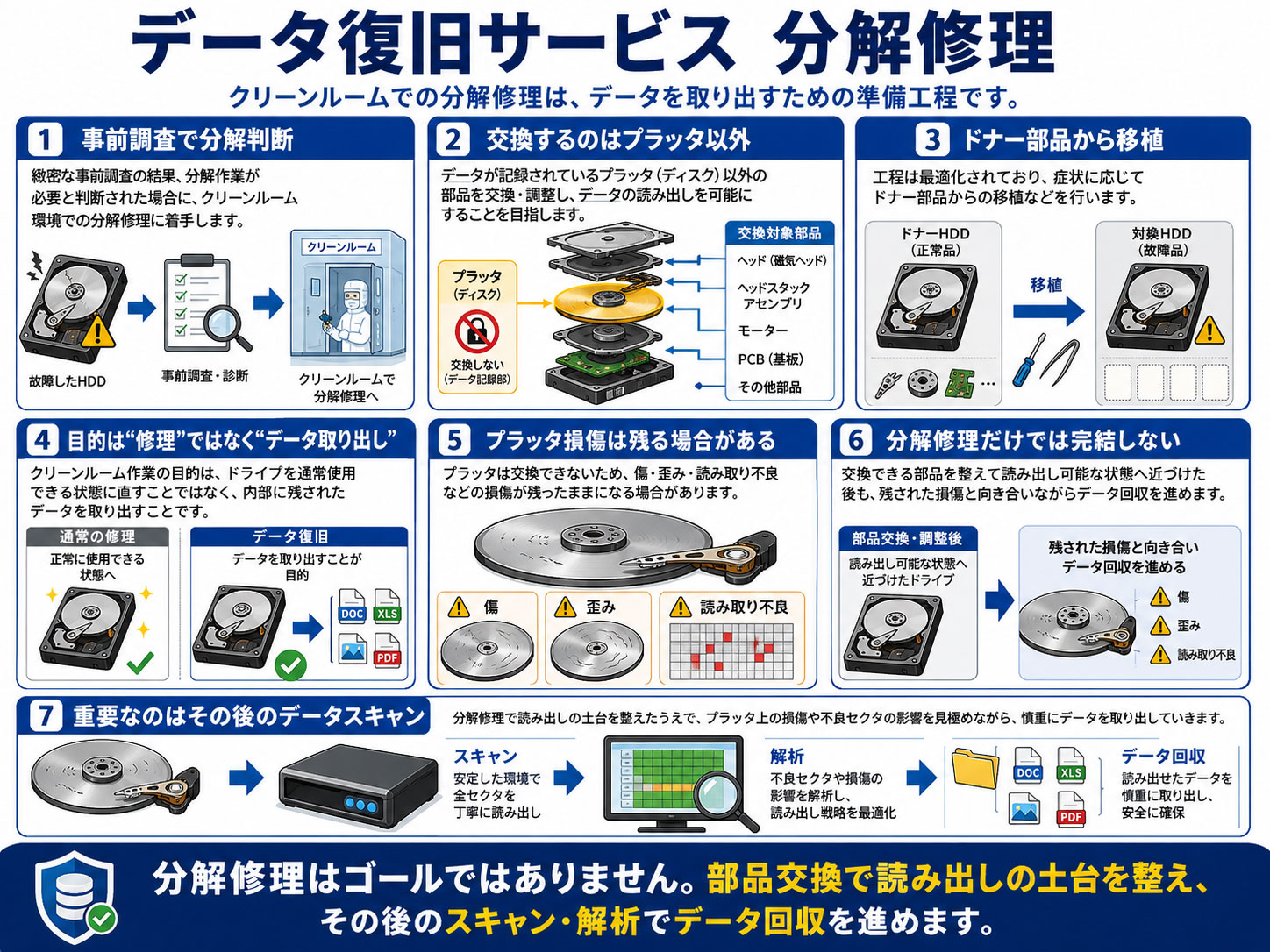

Repairing Physically Damaged Drives in a Clean Environment
物理障害ドライブをクリーンな環境で分解修理作業

[1] Head Crash (Damage to the Head Assembly)
[1] ヘッドクラッシュ(ヘッド系統の損傷)

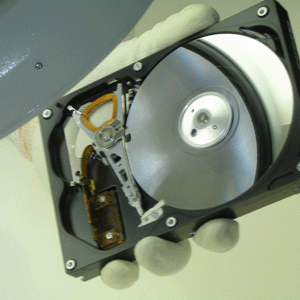

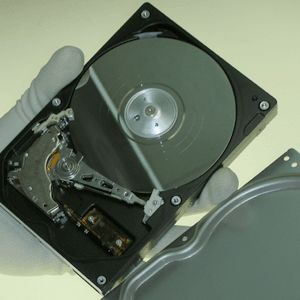

The head tip is slightly levitated and operated by the air pressure caused by rotation. If it collides with the disk surface for any reason, it will incur damage like shown in the image and become inoperable.
回転により起こる風圧で、ヘッド先端を僅かに浮かして稼動させております。なにかの拍子でディスク表面と衝突いたしますと、画像のような傷を負いまして、動作不能になります。

[2] Platter Warping
[2] プラッタ歪み

The cause of unreadability is not always the head assembly. Similar issues can occur when there is an anomaly in the platter, which holds the data. Generally, this type of failure is more troublesome than damage to the head assembly. The error is very small and not visible to the naked eye. The degree of warping is determined by the graph of the scanning system, so we postpone it to the data scanning process. The image on the right below shows the transfer rate, and the disorder in the graph indicates ‘its effect’.
読み込めなくなる原因が、ヘッド一式とは限りません。データを保持する側(プラッタ)に異常が生じた場合でも同様なことが起きます。一般的に、こちらの障害のほうが、ヘッド系統の損傷よりも厄介です。誤差は非常に小さいため、肉眼ではわかりません。歪みの度合いはスキャン系統のグラフで判断しますので、データスキャン作業に持ち越しいたします。以下右側にある画像が、転送レートで、グラフの乱れ方が「その影響」となります。

[3] Motor Burnout
[3] モータ焼け

This is a failure where the motor’s bearings burn out, preventing it from rotating.

  • There are cases where the motor barely rotates and cases where it does not rotate at all.
  • When the motor barely rotates, it produces a very loud abnormal noise.

モータの軸受が焼けて、回転できなくなる障害です。
※ かろうじてモータが回転する場合と一切回転しない場合にわかれております。
※ かろうじてモータが回る場合、非常に大きな異音が発生します。
